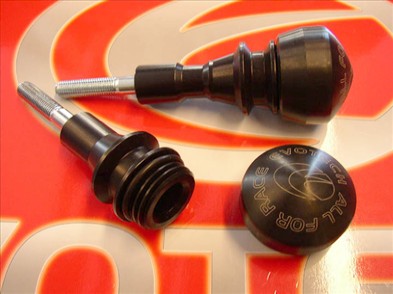

| Frame Sliders Defender for GSX-R 1000 '05-'06
[DEF0305] AANBIEDING van € 65,00 voor € 39,95.
Voor de montage van deze sliders hoeft niet geboord te worden
MAXIMUM LIGHTNESS: thanks to the innovative raw materials wrought by numerical control machines.
MAXIMUM SAFETY: the plug obtained from a single block of special plastic with low friction coefficient allows the motorbike to stop gradually during the fall reducing the risk of a roll over. All the fixing bolts are made of high-tensile steel.
MAXIMUM SAVING: in case of fall You will only need to replace the plastic plug. With a very low cost Your frame slider will be as new.
INNOVATIVE AESTHETIC QUALITY: we have studied a new design that matches the frame sliders with the line of the new motorbikes, sports and naked ones. In addition each part has been treated with an anodizing process which prevents the attack of atmospheric agents, preserving them forever as if they were new. The plug has been screen printed by laser.
SCREW PREVENTION SYSTEM: the only ones that have a system which prevents the loss of the plug during the driving.
MAXIMUM DISASSEMBLY PRACTICALNESS: it is sufficient to screw the plug with Your bare hands, without the help of utensils.
ASSEMBLING INSTRUCTIONS:
Right side:
- remove the bolt that fastens engine and frame (the one that You could see in the air intake of the fairing). It's easier to do this operation without fairing,
- unscrew derlyn plug from shorter slider and fix this one in place of the original bolt,
- in case that you have dismantled the fairing put it back and AFTER screw the plug on its aluminium support,
Left side:
- dismantle left fairing,
- remove the bolt that fastens engine and frame,
- in its place fasten the longer slider,
- put back the fairing and screw the plug on its support.
AANBIEDING: van € 47,50 voor € 39,95 |
